Shenzhen Yongjunyi Technology Co., Ltd.

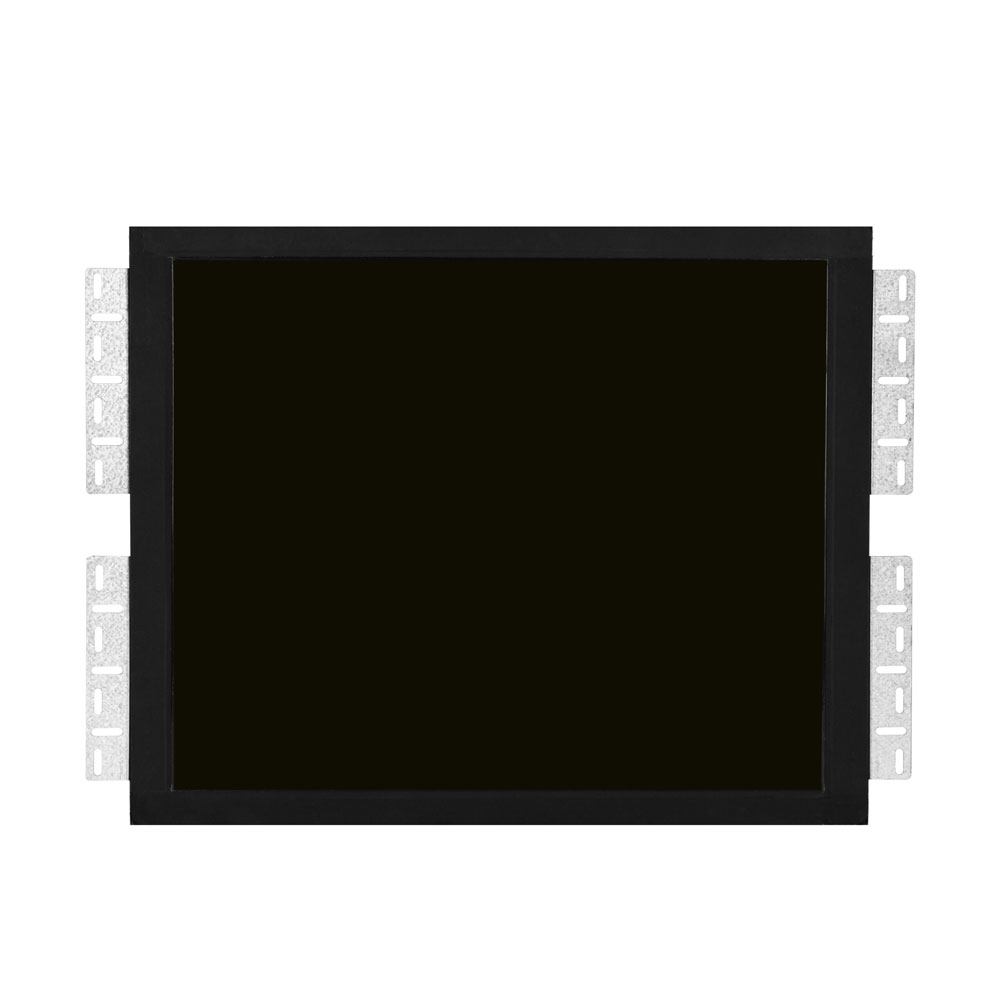

3M ELO Display 22 Inch LCD POG Coin Operated Arcade Cabinet Capacitive Touch Monitor Für Gamer
We design professional monitor für gamer specially built for commercial coin-operated POG arcade amusement machines. The standard model is 22-inch open frame gaming screen with 16:10 aspect ratio, and we support custom sizes of 17, 19, 24 and 32 inch to match different arcade cabinet layouts. This reliable monitor für gamer equips industrial multi-capacitive touch panel, fully compatible with mainstream 3M and ELO touch communication protocols, offering sensitive, lag-free touch interaction for long-hour continuous gaming use.
High Definition Screen Performance of Monitor für Gamer
This 22-inch arcade gaming display features native 1680×1050 resolution and 350cd/m² high brightness. It delivers 1000:1 contrast ratio, response time below 5ms and 178° ultra-wide viewing angle, presenting smooth, vivid game graphics. The LED backlight reaches 50,000 hours long service life, perfectly fitting the all-day running working mode of public game venues, with standard multi-touch function for complex game operations.
Wear-Resistant Capacitive Touch Panel for Arcade Equipment
The touch module adopts industrial capacitive touch technology, equipped with dual USB and RS232 touch interfaces. It supports widely used 3M and ELO touch protocols in the amusement industry. The touch glass has 7H high surface hardness, effectively resisting scratches caused by frequent tapping from players, extending the service life of your arcade cabinets.
Stable Power Supply & Multi Installation Methods
This arcade game screen supports AC110~240V wide voltage input, with 25W low power consumption and steady DC12V/4A output. Video ports include CGA, VGA and HDMI, with independent 12V DC power and touch connectors. The full metal housing works stably in -10℃~+65℃ temperature and 10%-90% humidity. Two mounting options are available: 75/100mm VESA rear mounting and flush embedded mounting with matched brackets. Complete cables and standardized carton packaging are included for easy installation and safe delivery.
| 22 inch LCD POG coin Operated Games touch screen monitor | |
| Style NO | YJ22 INCH open frame |
| Aspect Ratio | 16：10 |
| Native resolution | 1680X1050 |
| Number of touches | multi-touch |
| Brightness | 350cd/m² |
| Response | <5 msec |
| Viewing angle | 178/178(°) |
| Contrast ratio | 1000:1 |
| Backlight lifetime (hours) | LED / 50,000 |
| Touch panel | |
| Touch style | Capacitive |
| Touch interface | USB/RS232 |
| Touch panel protocol | compatible with 3M/ELO |
| Sureface hardness | 7H |
| power | |
| Power source | Input AC110 ~ 240V |
| Power consumption | 25W |
| output | DC12V/4A |
| Frenquency | 55Hz-75Hz |
| External connectors | |
| connectors | 12V DC-IN |
| video | CGA / VGA / HDM1 |
| Touch connector | 12V DC-IN |
| accessories | VGA cable, adapter, power cord,RS232 cable |
| packing | 3PCS/Carton,N.W.:29kg,G.W.:30kgPackage size: 56*35*45cm |
| Operation | |
| Temperature | -10 ~ +65(°C) |
| Humidity range | 10%-90% |
| Housing material | metal |
| Mounting | 1)75mm and 100mm VESA mount; Rear mount ; 2)Flush mount with included brackets ; |
