Shenzhen Yongjunyi Technology Co., Ltd.

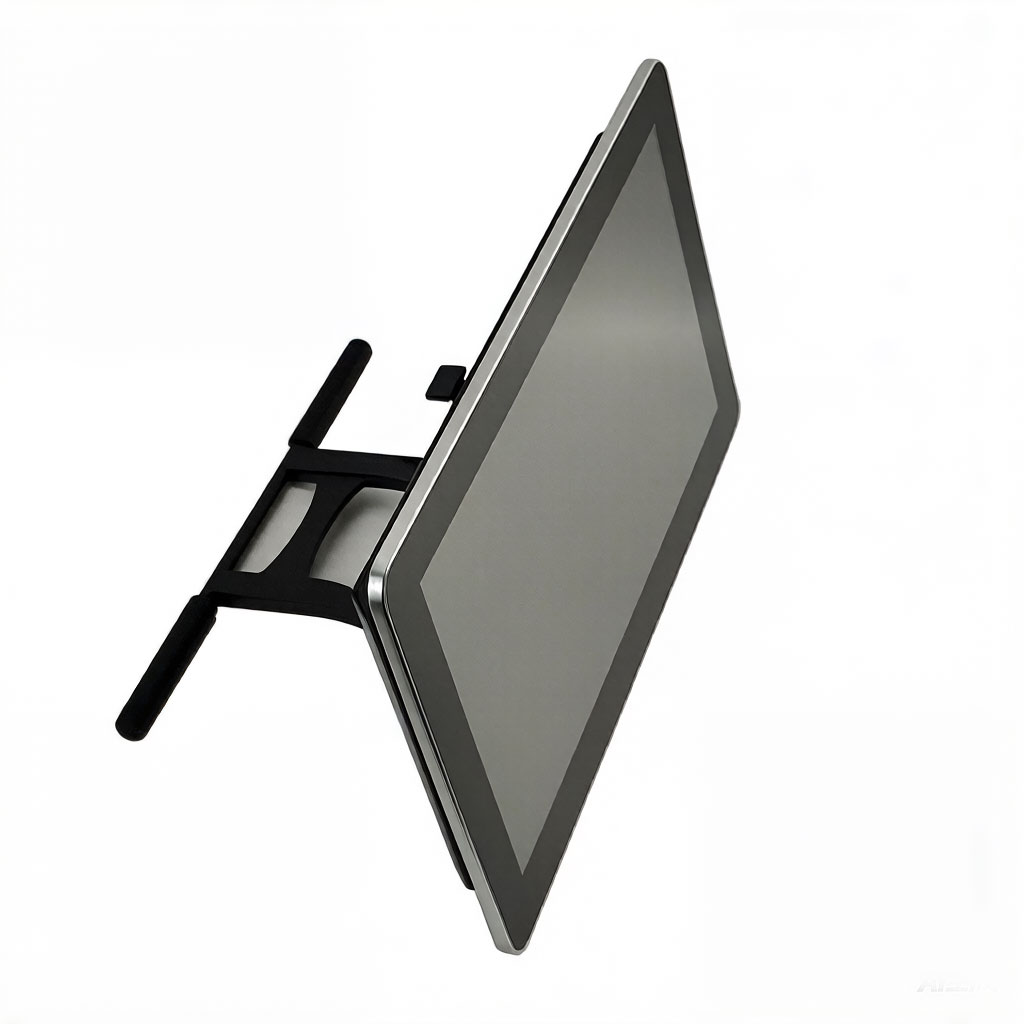

IP65 Waterproof 15.6 Inch Industrial Panel PC 16:9 FHD 10-Point Capacitive Touch All In One Computer, X86 Intel J1900 Upgradeable I3 I5 I7 Processor, Multi System Compatible, Custom 13.3 & 21.5 Inch Sizes
This 15.6″ Industrial Panel PC adopts rugged IP65 waterproof front panel design to resist water splash and industrial dust, suitable for humid, dusty and harsh factory working environments. Built with integrated all-in-one structure, it combines high-definition display, sensitive capacitive touch panel and stable X86 industrial host, supporting long-term 24-hour uninterrupted operation. Custom screen sizes including 13.3 inch and 21.5 inch are available to fit various installation scenarios.
16:9 FHD Waterproof Industrial Display
Adopting high-quality LED backlight, this 15.6 inch industrial panel PC delivers 1920*1080 full HD resolution with brightness over 300cd/m². It supports 16.7M true colors and less than 5ms ultra-fast response time to avoid screen lag during frequent touch operations. 170° horizontal and 160° vertical ultra-wide viewing angle ensures clear visual experience from all directions, with a service life of more than 50000 hours for durable industrial use.
15.6″ Industrial Panel PC With 10-Point High Precision Capacitive Touch Screen
Equipped with industrial-grade capacitive touch module, the device supports 10-point simultaneous multi-touch, allowing flexible zooming, shrinking and multi-point linkage control. With touch response time below 5ms and over 1.5mm effective touch recognition thickness, it adapts to complex industrial operation habits. High-speed USB 2.0 and USB 3.0 ports ensure stable and anti-interference touch signal transmission.
Upgradeable Intel X86 Industrial Hardware
This waterproof industrial all-in-one PC is equipped with Intel J1900 dual-core processor as standard, with optional i3, i5, i7 high-performance processors. It supports DDR3 2G/4G/8G/16G RAM and 32G to 500G SSD optional storage, equipped with integrated graphics card to stably output 1080P high-definition images and smoothly run various industrial control software.
Multi Operating System & Stable Dual Network
Fully compatible with Windows 7/8/10, Android and Linux multi-touch systems, it meets diverse industrial software operation requirements. Built-in gigabit adaptive wired network card and 802.11a/b/g/n wireless WiFi realize stable data transmission and remote equipment monitoring for industrial automation systems.
Rich Interfaces & Low Power Wide Voltage Power Supply
The panel PC reserves complete interfaces including VGA, HDMI, audio port, speaker, earphone jack, RJ45 and 4 USB ports for connecting multiple industrial peripherals. It supports 110-220V wide voltage input, with overall power consumption below 220W and standby power less than 3W, energy-saving and low heat for long-term continuous operation.
| J1900 I3 I5 I7 waterproof 15.6″ industrial all in one pc | |
| Panel | |
|
LED Backlight |
|
| Screen Size |
15.6 inch (16:9) |
| Viewing Angle: |
(H:170° V:160°) |
| Viewing Area: |
344.24(H)×193.54(V) |
| Resolution: |
1920×1080 |
| Brightness |
≥ 300/m2 |
| Color: |
16.7M(8-bit 2(LVDS) |
| Response Time: |
< 5ms |
| Touch panel | |
| Touch Mode: |
10 points Multi-Touch Capacitive Touch Screen |
| Quantity of Touch Point: | Standard Configuration: 10 Touch Points, enlarging and shrinking images is availablle, it also supports multi-touch. |
| Response Time | < 5ms |
| Touch Identification Validity: | > 1.5mm |
| Communication Code: | High Speed USB 2.0, 3.0 |
| Parameters of Computer | |
| Solution Type | X86 |
| chip | Intel Celeron,Dual Core Processor J1900 |
| RAM | DDR3 4G( 2G, 8G, 16G optional) |
| Hard Disk | SSD 64G 128G, 256G 500G optional |
| Display card | Integrated Display Card |
| Definition | 1920P/1080P |
| Operation System(Multi-touch System) | Multi-touch System: Windows 7/ Windows 8/Windows 10/ Android/Linux |
| Network Adapter | Integrated10/100/1000M auto-adaptive Network Card( 10/100/1000M), Wireless Network Card 802.11a/b/g/n( 802.11a/b/g/n) |
| Overall Power Consumption | <220W |
| Standby Power Consumption | <3W |
| Power supply input | 220V AC 50/60Hz |
| Parameters of Display | |
| Power Supply Interface: | 12V |
| Interface inputs | VGA, HD MI, Speakers, Earphone, Audio, RJ45, 4USB, |
| Power supply parameters | |
| Input Power Supply: | 110-220V AC 50/60Hz |
| Output Power Supply: | 12V 5A |
| Overall Power Consumption | <220W |
| Standby Power Consumption | <3W |
| Working Life: | > 50000 Hours |
| Refresh Frequency: | 60Ghz |
