Shenzhen Yongjunyi Technology Co., Ltd.

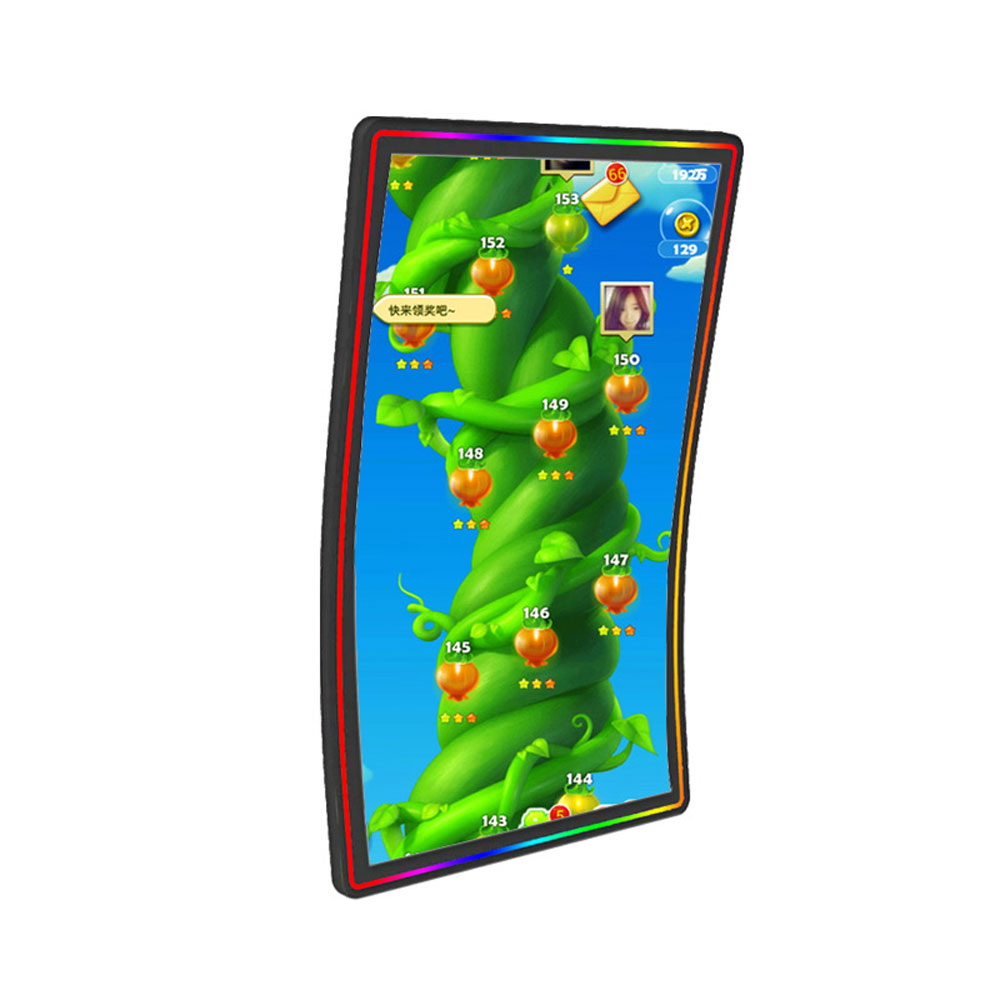

43 Inch J Curved LED Gaming Monitor, 3M/ELO Capacitive Touch Screen For Coin Operated Arcade Cabinets, Dimensioni Personalizzate Disponibili
4K Display Performance of J Curved Touch Monitor
This J curved touch monitor adopts 16:9 wide aspect ratio and native 3840*2160 4K resolution with 350cd/m² high brightness and 1000:1 contrast ratio. Response time under 5ms eliminates motion blur for fast-paced slot games, paired with 170° horizontal / 165° vertical wide viewing angle for consistent visuals from all player positions. Built-in LED backlight offers 50,000 hours service life to lower long-term maintenance costs for arcade operators.
3M/ELO Compatible Capacitive Multi-Touch Panel
As a professional J curved touch monitor, it is equipped with industrial capacitive multi-touch glass with 7H scratch-resistant surface hardness. Dual USB and RS232 touch interfaces are reserved, fully compatible with mainstream 3M and ELO touch protocols widely used in arcade industry. The multi-touch function works perfectly with MT340, POG, WS and FOX 340 classic game systems, providing stable sensitive tapping experience for frequent public use.
Universal Power Supply & Full Video Interfaces
The J curved touch monitor supports universal AC110~240V wide voltage input with only 25W low power consumption, stable DC12V/4A output to power arcade cabinet hardware. Multiple video ports include VGA, HDMI, USB and optional DVI DC, independent 12V DC-IN connectors separate power and touch signal wiring to avoid installation conflicts. Complete matching accessories (cavo VGA, adattatore, cavo di alimentazione, cavo RS232) are included for plug-and-play setup.
Dual Mounting Solutions & Stable Industrial Environment Adaptability
Two reliable installation modes are supplied for this J curved touch monitor: standard 75mm & 100mm VESA rear mount and flush embedded mount with dedicated brackets. Full metal sturdy housing runs steadily within 0℃~50℃ operating temperature and 20%~80% operating humidity, also supporting -20℃~60℃ storage environment, suitable for bars, game halls and all indoor commercial amusement scenes.
| Monitor da gioco LED 43 curved J for coin operated Arcade Cabinet | |
| Stile NO | Schermo curvo YJ43 POLLICI |
| Rapporto d'aspetto | 16：9 |
| Risoluzione nativa | 3840*2160 |
| Numero di tocchi | multi-touch |
| Luminosità | 350cd/m² |
| Risposta | <5 msec |
| Angolo di visione | (H) 170 ° (V) 165 ° |
| Rapporto di contrasto | 1000:1 |
| Durata retroilluminazione (ore) | LED / 50,000 |
| Pannello touch | |
| Stile touch | Capacitivo |
| Interfaccia touch | USB/RS232 |
| Protocollo pannello touch | compatibile con 3M/ELO |
| Durezza superficie | 7H |
| alimentazione | |
| Fonte di alimentazione | Ingresso AC110 ~ 240V |
| Consumo energetico | 25W |
| uscita | DC12V/4A |
| Frequenza | 55Hz-75Hz |
| Connettori esterni | |
| connettori | 12V DC-IN |
| video | VGA HDMI USB DVI DC opzionale |
| Connettore touch | 12V DC-IN |
| accessori | cavo VGA,adattatore, cavo di alimentazione,cavo RS232 |
| sistema operativo | MT340 ( POT O GOLD ) o WS o FOX 340 |
| Operazione | |
| Temperatura | Operativa:0℃~50℃, Stoccaggio:-20℃~60℃ |
| Gamma di umidità | Operativa:20%~80%, Stoccaggio:10%~90% |
| Materiale del telaio | metallo |
| Mmontaggio | 1)75supporto VESA da 75 mm e 100 mm; montaggio posteriore ; 2)Montaggio a filo con staffe incluse ; |
