Shenzhen Yongjunyi Technology Co., Ltd.

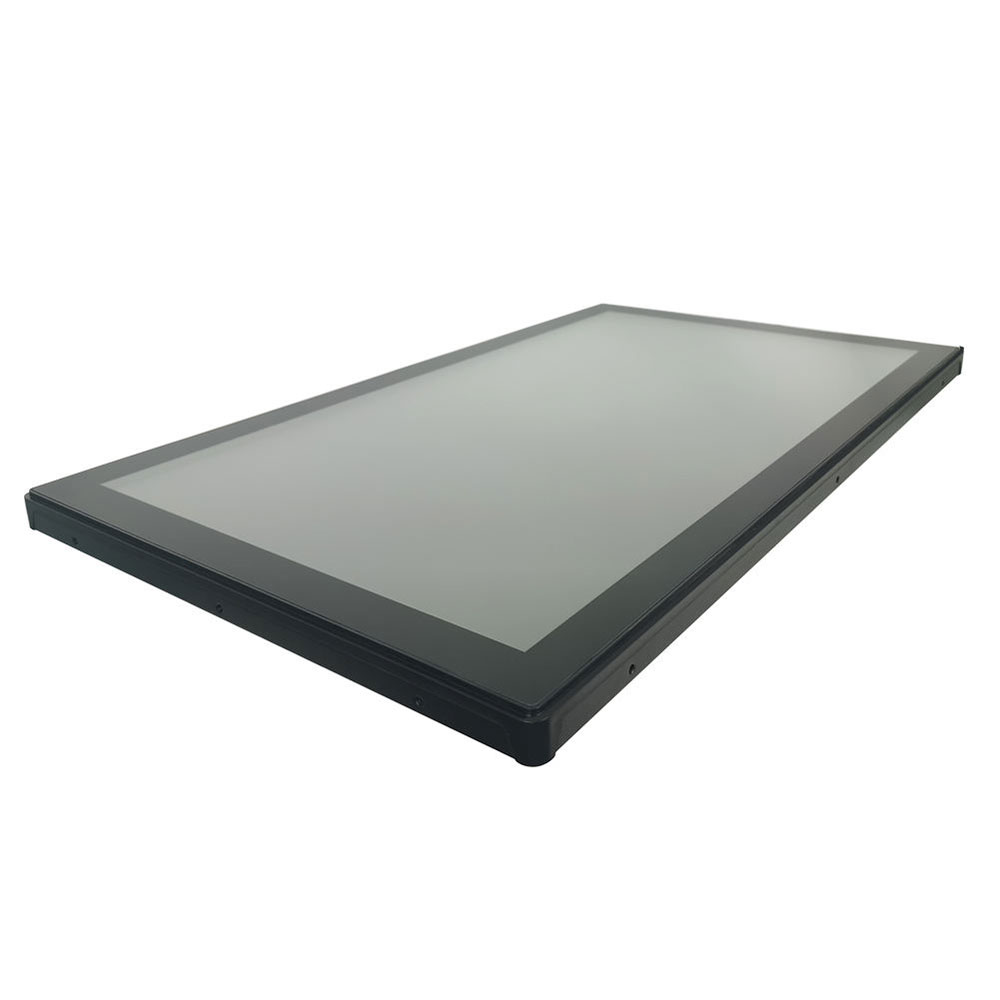

21.5 Inch PCAP Capacitive Touch Screen LCD Monitor, 16:9 1920×1080 FHD TFT LCD, 350cd/m² High Brightness, 10-Point Capacitive Multi Touch, Optional Resistive/IR/SAW Touch, 7H Hard Glass, Multi Installation Industrial Display, Custom 23.8/24/27/32 Inch Sizes Support
This 21.5 inch PCAP touch monitor adopts commercial industrial integrated frame design, built with premium PCAP capacitive touch core for smooth multi-point interactive control. The 16:9 wide screen layout fits mainstream industrial control terminals, self-service kiosks and production line monitoring equipment, supporting non-stop 24/7 long time running. We offer full size customization covering 23.8, 24, 27 and 32 inch to match different embedded and wall-mounted installation layouts.
16:9 FHD High Brightness Industrial LCD Display Parameters
Equipped energy-saving LED backlight TFT LCD panel, this 21.5 inch PCAP touch monitor delivers native 1920×1080 full HD resolution and 350cd/m² stable brightness suitable for indoor bright workshop environments. It renders 16.7 million rich true-to-life colors with 5ms rapid response time to eliminate image ghosting during frequent touch operations. 89-degree ultra-wide symmetric viewing angles deliver consistent color and clarity from all viewing directions, and long service life LED backlight reduces later maintenance frequency for continuous use scenarios.
21.5 inch PCAP touch monitor With Multi-Type High Precision Industrial Touch Screen
The monitor adopts standard 10-point PCAP capacitive touch, supporting free zoom, drag and multi-point joint operation without lag. For special industrial environments, 4/5-wire resistive touch, infrared touch and surface acoustic wave touch are available as alternative selections. The touch panel uses high transmittance 87% glass with surface hardness above 7H to resist scratches and abrasion, and touch response speed is controlled under 10ms to maintain stable sensitive input under slight vibration and dust conditions.
Flexible Multi-Mode Installation Design
With medium-sized lightweight frame structure, this 21.5 inch touch LCD monitor supports five universal installation modes including desktop placement, wall hanging, ceiling hanging, embedded cabinet mounting and standard VESA back mounting. It can be seamlessly embedded into large equipment cabinets and self-service machine housings. Black and silver two industrial shell colors are optional to coordinate with different equipment appearance styles and site decoration styles.
Stable Power Supply & Strong Environmental Adaptability
This PCAP touch LCD monitor supports global universal AC110~220V wide voltage input and stable DC12V 4A power output, featuring low heat generation and low power consumption to avoid overheating after long-time operation. It runs reliably within 0℃ to 50℃ working temperature and -20℃ to 60℃ storage temperature, adapts to 20%-80% working humidity, and can work normally under altitude below 3000 meters with strong anti-interference performance.
Standard Accessories & Custom Size Service
Each 21.5 inch PCAP touch monitor is equipped with complete supporting cables including VGA signal cable, USB touch cable and matching power adapter for plug-and-play quick installation and on-site commissioning. Apart from the standard 21.5-inch model, all listed alternative sizes can be customized, and buyers can adjust touch types, screen brightness and shell colors according to actual project requirements to realize exclusive matching display solutions.
| 21.5 inch (23.8 24 27 32 inch) PCAP touch screen LCD monitor | ||
| Display | size | 16:9 Ratio 21.5″ Active Matrix TFT LCD |
| Aspect Ratio | 16:9 | |
| backlight | LED backlight | |
| Active Display Area | 476.64 × 268.11 mm (H×V) | |
| Resolution Ratio | 1920×1080 | |
| Brightness | 350cd/m² (Typ.) | |
| Contrast Ratio | 1000:1 | |
| Colors | 16.7M | |
| Response Time | 5ms | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | |
| TouchScreen | Touch Technology | 10 points Multi-Touch Capacitive Touch Screen |
| touch options | (4 or 5 wires resistive touch,IR SAW touch optional) | |
| Touchscreen Transparency | 87% | |
| Touch Surface Hardness | >7H | |
| Touch Response Time) | <10ms | |
| I/O port | Interface | VGA HDMI USB DVI optional |
| Others | Power Supply | DC12V 4A AC110~220V |
| Installation | 1:Desktop 2: wall-hanging 3: ceiling-hanging 4:embedded ,5:vesa | |
| product color | black or sliver | |
| Temperature | Operating:0℃~50℃, Storage:-20℃~60℃ | |
| Humidity | Operating:20%~80%, Storage:10%~90% | |
| Altitude | <3000 m | |
| Accessories | VGA cable, USB cable, Power adapter | |
