Shenzhen Yongjunyi Technology Co., Ltd.

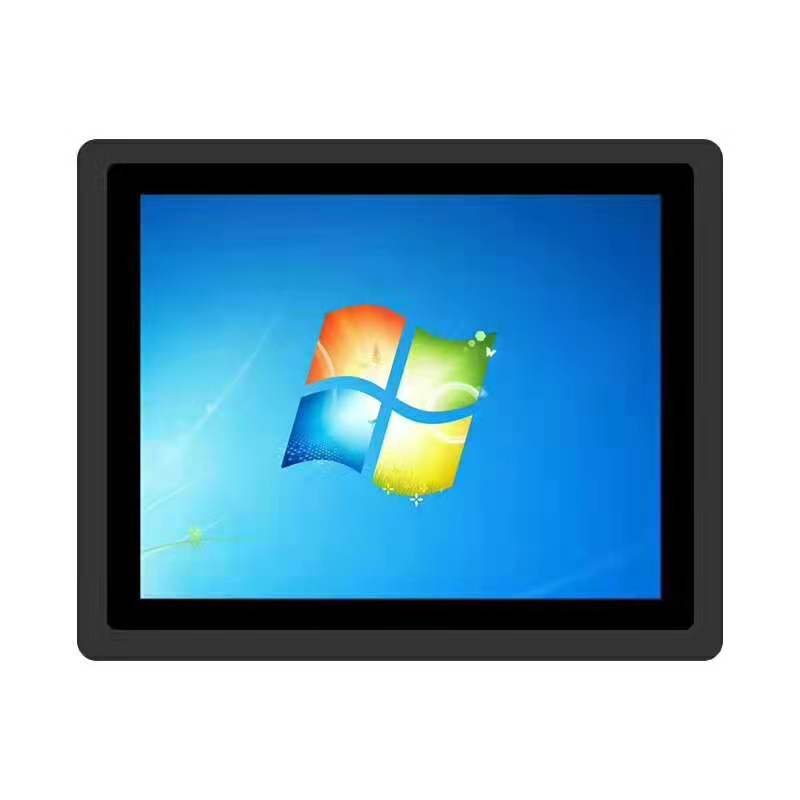

19 Inch Fanless Industrial Panel PC X86 Capacitive Touch All In One Embedded Computer, Compatible With Windows Linux XP CE MAC, Custom 15 17 Inch Fanless Industrial Panel PC Sizes Available
This robust 19 inch fanless industrial panel PC adopts fully enclosed passive heat dissipation design, removing cooling fans to avoid mechanical failure in long-time industrial continuous operation. This 19 inch fanless industrial panel PC matches standard 4:3 industrial display and 10-point capacitive multi-touch screen, perfectly applied to factory automation, embedded control equipment and workshop operation terminals. We provide customized 15 inch and 17 inch fanless industrial panel PC to fit various cabinet installation space limits.
Display Screen Specs of 19 Inch Fanless Industrial Panel PC
The display equipped on this 19 inch fanless industrial panel PC adopts long-service-life LED backlight, classic 4:3 aspect ratio and native 1280*1024 resolution. It delivers stable 300cd/m² brightness, 16.7 million rich display colors and response time less than 5ms to eliminate screen lag during frequent touch operations. The 85/85/80/80 wide viewing angle guarantees clear reading from front and side installation angles, and the backlight lifespan exceeds 50000 hours to cut later maintenance costs.
10-Point Capacitive Multi-Touch Module
This fanless industrial panel PC is equipped with industrial-grade capacitive multi-touch screen, supporting 10 simultaneous touch points for zoom, shrink and multi-point collaborative operation. Touch response time is below 5ms, and touch identification effective thickness is over 1.5mm. High-speed USB 2.0 & USB 3.0 communication ports maintain stable touch signal transmission even in dusty and slightly vibrating industrial environments.
X86 Fanless Industrial Host Core Configuration
Built on mature fanless X86 architecture, this 19 inch fanless industrial panel PC takes Intel Celeron J1900 as standard CPU, with optional i3, i5, i7 processors for higher computing demands. Users can flexibly select DDR3 RAM from 2G to 16G and SSD storage ranging from 32G to 256G. The integrated graphics chip supports 720P and 1080P high-definition output, compatible with mainstream multi-touch systems Win7/8/10, Android, Linux, as well as legacy single-touch systems XP, CE and MAC. Built-in gigabit wired network and dual-band 802.11a/b/g/n WiFi meet diverse on-site data transmission requirements.
Rich Interfaces & Wide Voltage Stable Power Supply
Multiple universal external interfaces are reserved on the full-metal housing of the 19 inch fanless industrial panel PC, including VGA, HDMI, audio jacks, earphone port, RJ45 network port and 4 groups of USB ports to connect printers, card readers and other peripherals. It supports 110-220V wide AC voltage input and stable 12V 5A DC output, total power consumption under 220W and standby power consumption lower than 3W, matching the low-heat passive cooling fanless design.
| 19 inch industrial all in one computer | |
| Panel | |
|
LED Backlight |
|
| Screen Size |
19inch (4:3) |
| Viewing Angle: |
85/85/80/80 (Typ.)(CR≥10) |
| Viewing Area: |
376.32×301.056 mm (H×V) |
| Resolution: |
1280×1024 |
| Brightness |
300/m2 |
| Color: |
16.7M(8-bit 2(LVDS) |
| Response Time: |
< 5ms |
| Touch panel | |
| Touch Mode: |
10 points Multi-Touch Capacitive Touch Screen |
| Quantity of Touch Point: | Standard Configuration: 10 Touch Points, enlarging and shrinking images is availablle, it also supports multi-touch. |
| Response Time | < 5ms |
| Touch Identification Validity: | > 1.5mm |
| Communication Code: | High Speed USB 2.0, 3.0 |
| Parameters of Computer | |
| Solution Type | X86 |
| chip | Intel celeron J1900( i3 i5 i7 optional) |
| RAM | DDR3 4G( 2G, 8G, 16G optional) |
| Hard Disk | SSD 64G( 32G, 128G, 256G optional) |
| Display card | Integrated Display Card |
| Definition | 720P/1080P |
| Operation System(Multi-touch System) | Win7/Win8/Win10/ Android/LinuxSingle Touch System: XP/CE/MAC |
| Network Adapter | Integrated10/100/1000M auto-adaptive Network Card( 10/100/1000M), Wireless Network Card 802.11a/b/g/n( 802.11a/b/g/n) |
| Overall Power Consumption | <220W |
| Standby Power Consumption | <3W |
| Power supply input | 220V AC 50/60Hz |
| Parameters of Display | |
| Power Supply Interface: | 12V |
| Interface inputs | VGA, HD MI, Speakers, Earphone, Audio, RJ45, 4USB, |
| Power supply parameters | |
| Input Power Supply: | 110-220V AC 50/60Hz |
| Output Power Supply: | 12V 5A |
| Overall Power Consumption | <220W |
| Standby Power Consumption | <3W |
| Working Life: | > 50000 Hours |
| Refresh Frequency: | 60Ghz |
